Product Introduction:

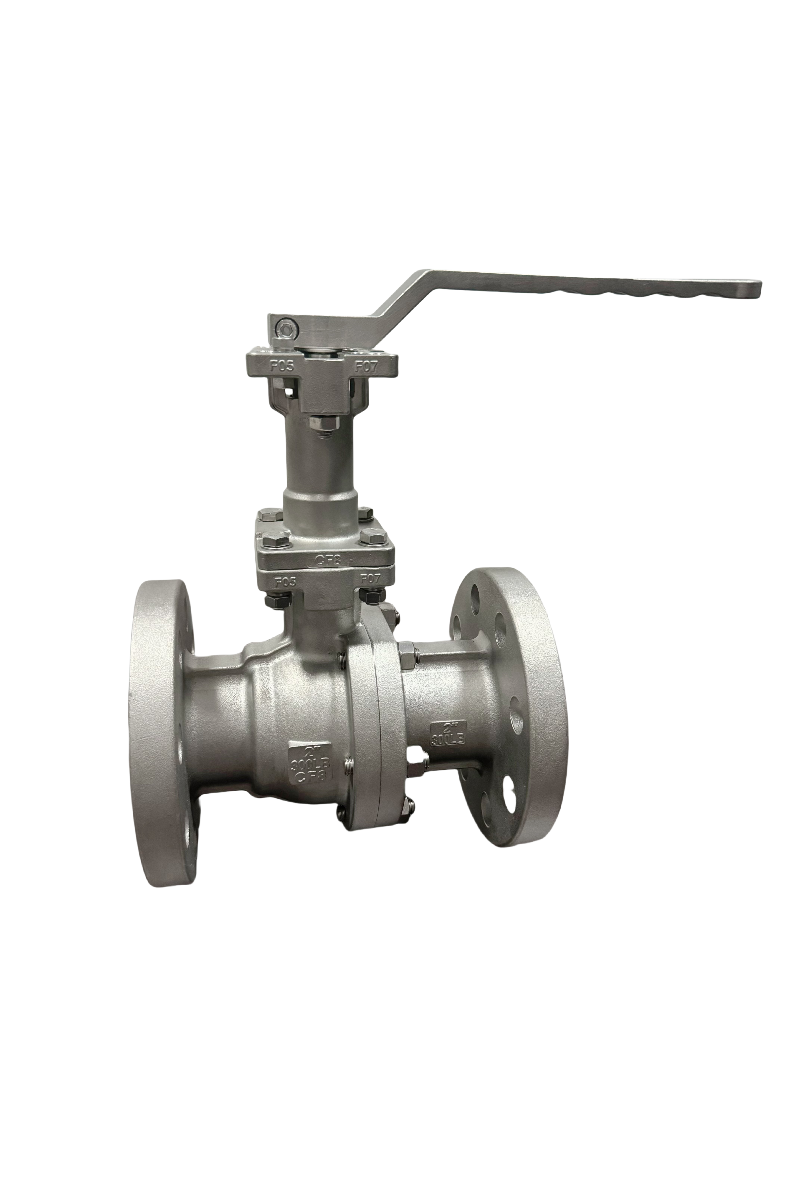

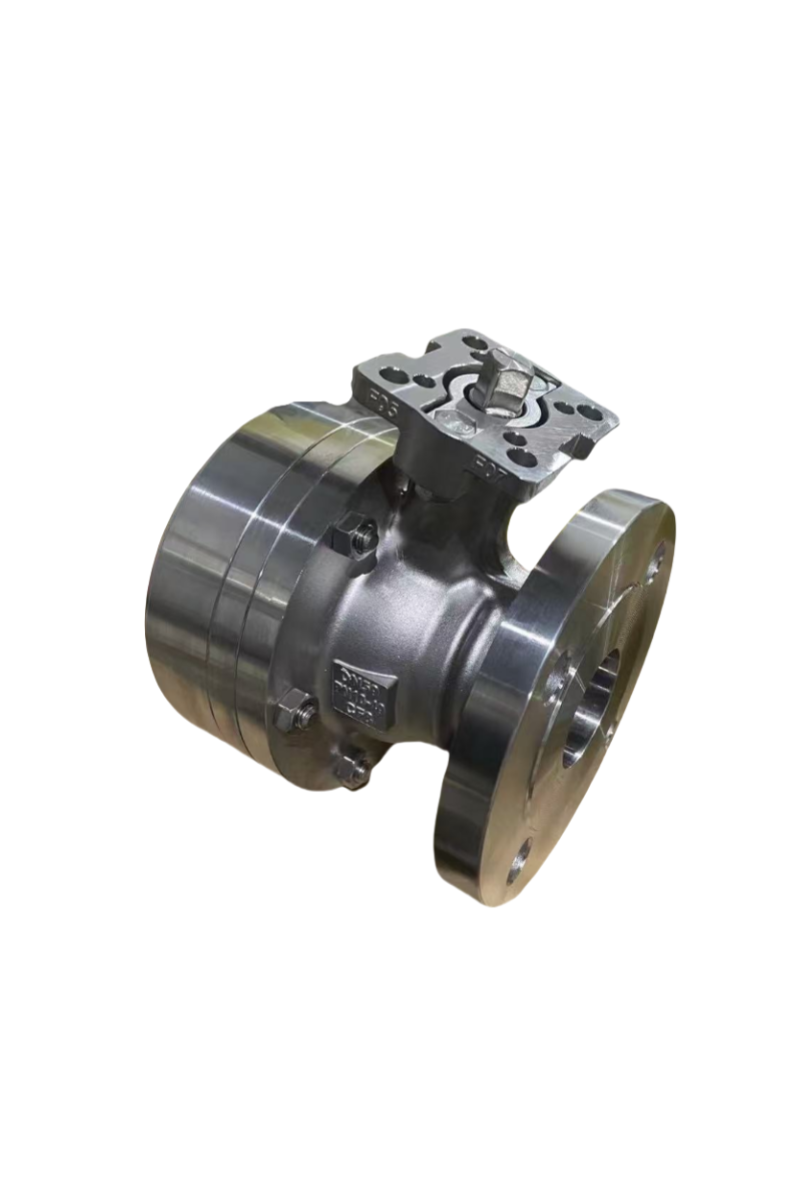

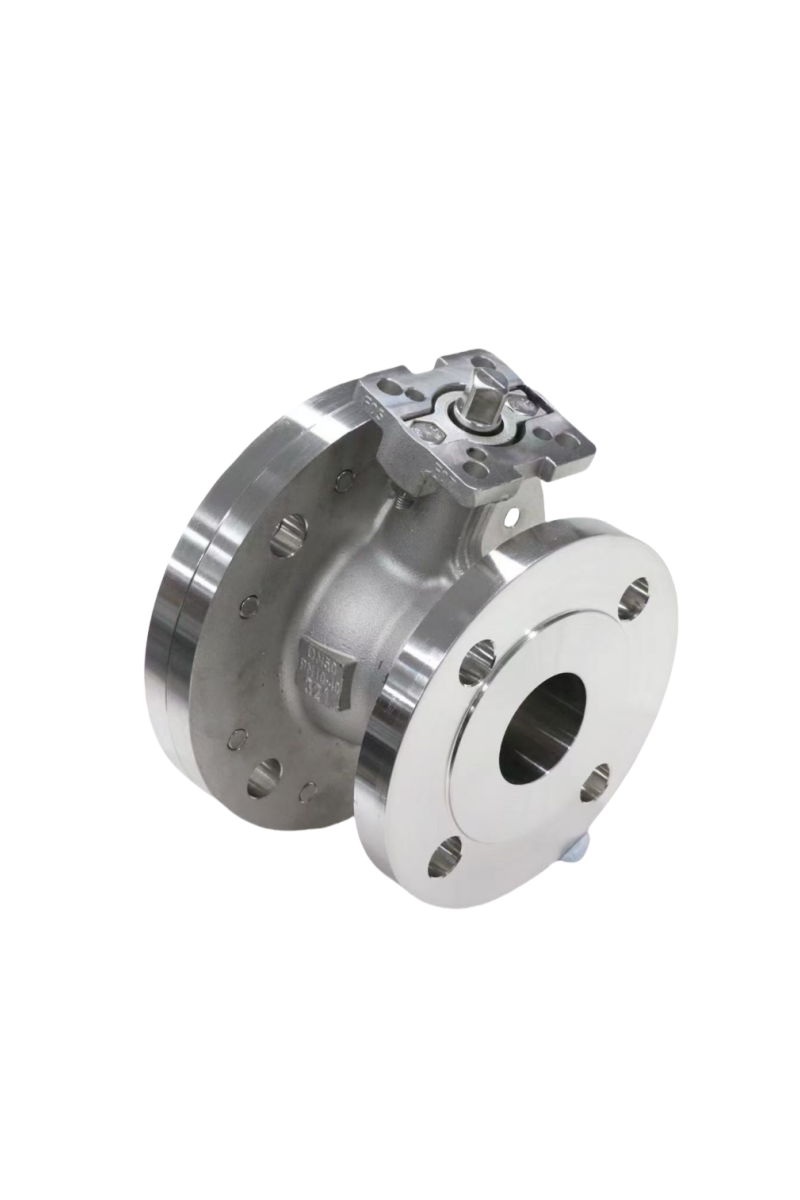

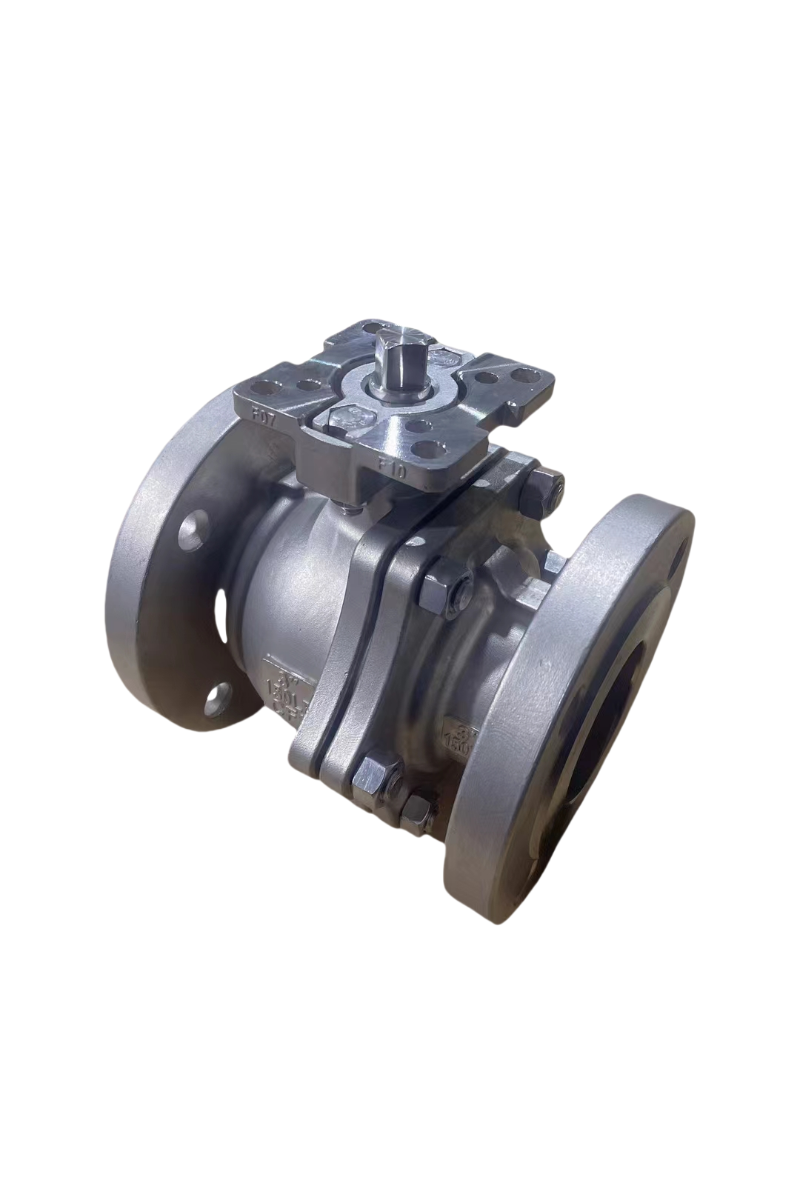

The side mounted floating soft seal ball valve adopts a one-piece valve body design or a two-piece split design, with a temperature range from -46~200 ℃; All valves in this series are designed for fire resistance and undergo fire tests in accordance with API607 and API6FA

Design standards: ASME B16.34、API 6D、API 608、ISO 17292、GB/T 12237

Length standard: ASME B16.10、EN558、GB/T12221

Test standard: API598、EN12266、GB/T13927

Caliber: 1/2 "~10" (DN15~DN250)

Pressure: ASME CLASS 150~300(PN16~PN40）

Main materials: carbon steel, stainless steel, alloy steel and duplex steel, nickel based alloys, etc

Connection form: flange end, welded end, etc

Operation modes: manual, pneumatic, electric, hydraulic, etc

Note: For more detailed information, please call for consultation
