Product Introduction:

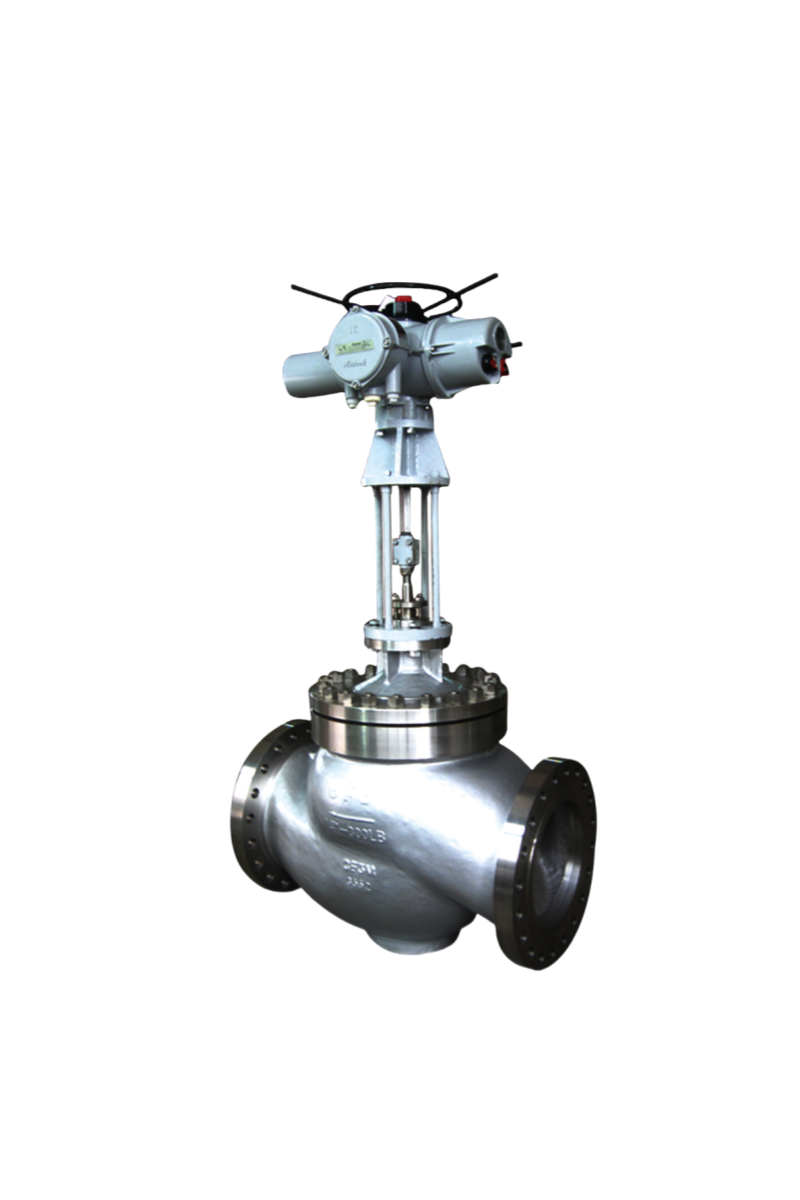

Cage type regulating valve is a new type of pressure balance regulating valve that combines the advantages of high sealing performance of single seat regulating valve and high allowable pressure difference of sleeve regulating valve. The valve body structure is compact, small in volume, simple in structure, and the fluid channel is S-shaped. It has a large guiding area of the valve core, good anti vibration performance, low pressure drop loss, large flow rate, and wide adjustable range. Due to the fluid pressure balance structure of the valve core, stable regulation can be achieved with only a small operating force. The throttling window of cage type regulating valve has two types: the large opening window series and the small hole (low-noise type) series. The latter has the function of reducing noise and resonance, and can be used as a specialized low-noise valve, suitable for situations where high pressure difference is prone to flash evaporation cavitation.

Design standards: ASME B16.34, ISO 17292, GB/T 12237

Length standards: ASME B16.10, EN558, GB/T12221

Test standards: API598, EN12266, GB/T13927

Caliber: 1 "~24" (DN25~DN600)

Pressure: ASME CLASS 150~600 (PN16~PN100)

Main materials: carbon steel, stainless steel, alloy steel and duplex steel, nickel based alloys, etc

Valve cover form: standard type -29~+200 ℃, heat dissipation type+200~+560 ℃

Bellows type -100~+420 ℃, low-temperature type -196~-29 ℃

Connection form: flange end, welding end, etc

 Note: For more detailed information, please call for consultation
